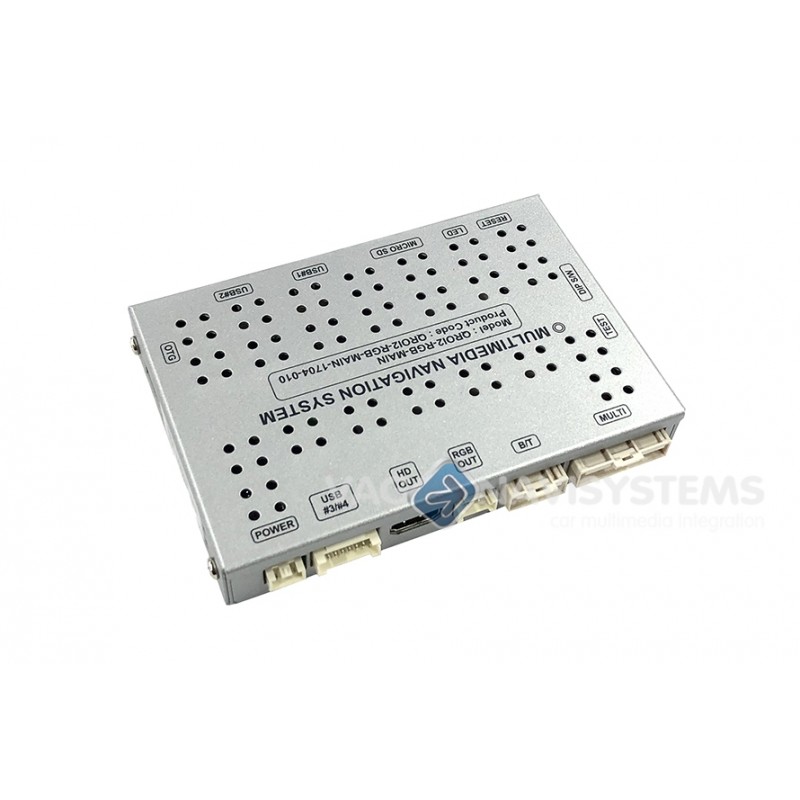

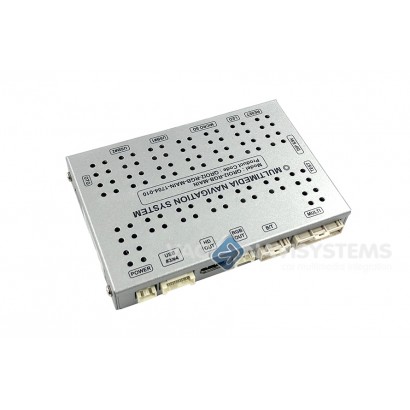

Universal Interface - NaviTouch Android "Octa" 5.1.1 - GPS, Wifi, 3G/4G, USB, SD, BT

0 Reviews Write a review

€499.00

Tax included

Reference: RGBQ511

Specific References

The Universal Interface - NaviTouch Android "Octa" 5.1.1 - GPS, Wifi, 3G/4G, USB, SD, BT will deliver to your vehicle (or any compatible monitor where you insert its video signal) an Android 5.1.1 Lollipop system. It can be controlled by using an external touch panel or an external control device such as a pc mouse.

Description
Review

The user interface and the operational system has been specially made to be used in the automotive branch. The design of the menus, icons position, launcher (home-screen) and the operatibility of the whole system, has been developed considering the use and management by touch in the vehicle.
RGB or composite video (CVBS) to use with any monitor: To have a greater image quality the device has a RGB image output.
Possibility to connect via internet through Wifi, mobile data 3G/LTE or Wifi (hot spot); (3G/LTE dongle not included).
Fast and smooth response: Device equipped with a Nexell S5P6818 Cortex A53 Octa core 1.6GHz processor with 16Gb internal memory (storage), running Android 5.1.1 Lollipop.
Access and content download from the official Google Play Store*. Availability of a wide range of applications, possibilities and endless content to download and use on your device.
Bluetooth handsfree function and Bluetooth A2DP audio streaming reproduction.
GPS data reception (Ublox-8 Glonass), for using any kind of navigation software compatible with Android.
Microphone, for handsfree bluetooth function usage and also the use of applications compatible with voice control.
1x CVBS video input (RCA)
1x SDHC input (up to 64Gb).
1x USB OTG input.
4x USB additional inputs (Media).

¿How can I use this device in my vehicle?

To use this device, you need to have a monitor. It can be the original monitor factory installed or an aftermarket monitor.
If your vehicle already have a monitor factory installed, in most cases you will require a multimedia interface (depends on brand and model) for the image integration in your vehicle.
In addition, a touch panel will be required to control the system. If your monitor already has touch function, then it is not necessary to install.
If you want to integrate the sound through the car speakers, you can use the car's AUX (audio input).
If your vehicle does not have an AUX, then you can install an AUX integration module that we offer.
Finally, we have exclusive retrofit kits, tested and made specifically for certain brands and models of vehicles, we call them: NaviTouch® Android.

Technical specs:

O.S: Android 5.1.1 Lollipop.
CPU: Nexell S5P6818 Cortex A53 Octa core 1.6GHz.
Internal memory: DDR3 2GB RAM + 16GB eMMC.
External memory: SDHC (up to 64gb) 1x USB OTG 2.0
Connections: 4x USB 2.0, 2x video inputs (CVBS), 1x RGB output, 1x video output (CVBS), 1x audio output (stereo), 1x external speaker (mono), 1x microphone.
Supported resolutions: RGB 800x480, RGB 480x234, RGB 400x234, CVBS (NTSC/PAL).
Touch type: 4 wire resistive and UART capacitive.
Bluetooth 4.0
Stereo audio output (2x channels RCA)
GPS: 1x GPS input (SiRF) (Ublox-8 Glonass)
Operational temperature: -10º ~ 70º
Storage temperature: -20º ~ 80º

Package Contents

Andorid Interface
Main harness, includes plugs to:
- GPS antenna
- Speaker
- Audio output (stereo)
- 2 video inputs
- 3 video outputs
External speaker
GPS Antenna
Touch cable connection for multimedia interface
Wifi dongle
Microphone
2 video inputs, 3 video outputs
