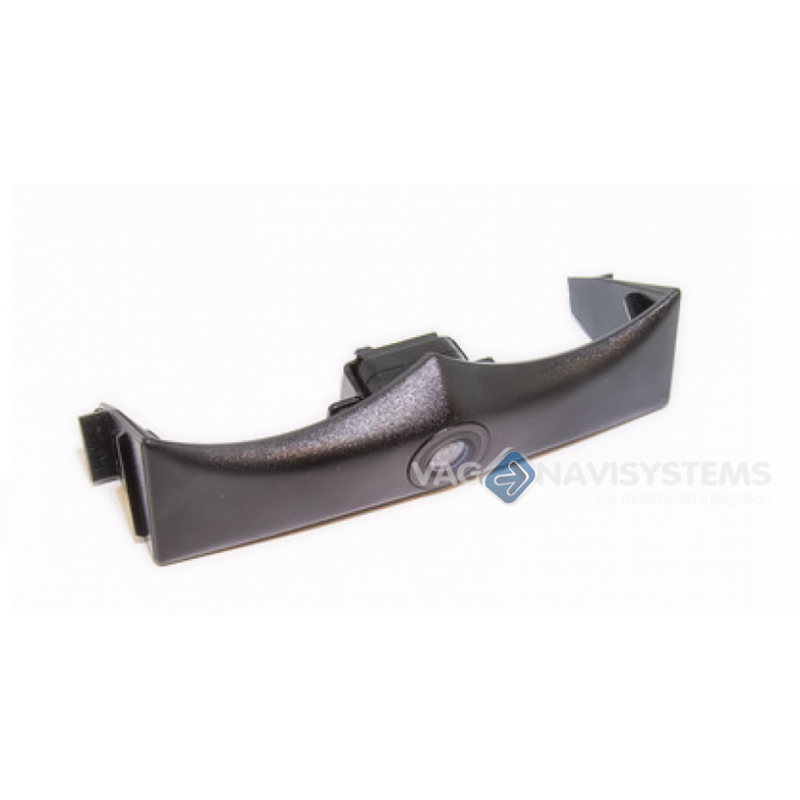

Aftermarket Camera - Front - Audi A4 (B9/F4)

0 Reviews Write a review

€95.00

Tax included

Data sheet

Brands: Audi
Model: A4
Year: A4 (B9/F4) | 2016 y posteriores

Reference: FVCA4F4

In stock: 1 Item

Specific References

Aftermarket Front camera

Qty :

Description
Review

Aftermarket Front camera

Main features:

Front Camera
Possibility to connect to any monitor, RCA plug (NTSC/PAL)
High end quality
Waterproof and dust protection IP68

Suitable for:

Audi A4 (B9/F4)

Technical features:

480 / 580 TV definition lines
Viewable angle: 170°
Sensor: 1/3" CMOS
Lens: 1.8mm
Format: NTSC/PAL
Frame rate: 20/30 fps
Min. Sensibility: <0.02 (Lux.sec) F1.2
White balance: Auto
Level balance: Auto
Video output: RCA 1.0 Vpp 75 Ohm
Operation temperature: -40º?+85º (RH95% Max.)
Working voltage: DC12V±15% 90mA±10%
Waterproof index: IP68

Package Contents

Audi A4 (F4) Front view camera
Power supply wiring
5 meters long RCA cable

Notes

To be able to install this camera you imprescindibly will need to have an aftermarket headunit installed on the vehicle (which includes RCA camera input) or to have a multimedia interface in order to be able to use the camera on the factory Audi genuine system.
