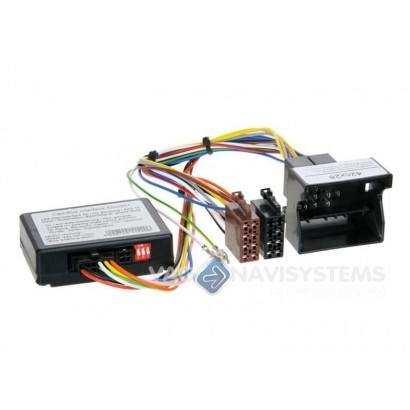

Can Bus Interface for DSP amplifier activation - VW Touareg (7L), T5 (7H)

0 Reviews Write a review

€165.00

Tax included

Data sheet

Brands: Volkswagen
Model: Touareg
Model: T4 - T5 - T6 Transformer, Multivan, California
Year: Touareg (7L) | 2002 - 2009
Year: T5 - Transporter, Multivan, California | 2005 - 2010

Reference: CANDSP7L

In stock: 3 Items

Specific References

Quadlock to ISO adapter interface for the aftermarket radios connection.

Description
Review

Quadlock to ISO adapter interface for the aftermarket radios connection.

Compatible with:

VW Touareg (7L) with amplifiers 7L0 035 456A & 7L0 035 466.
VW T5

With a Quadlock connector, even it is also available on a ISO connector type.

This interface is used to solve the audio compatibilty problems when installing aftermarket radios on VW Touareg/T5 vehicles with a factory 10/12 channel amplifier; without this interface, amplifier won't be activated and vehicle won't be able to emit any sound.

This interace sends a CAN signal (exactly like the one that would send the original radio) to the amplifier in order to activate it and let the speakers sound.

Additionally (depending on the vehicle), this interface also converts the CAN-BUS signals to the analogic outputs:

- Key on ignition position (ACC) max 1.5A
- Velocity (Gala)
- Rear gear (R) max 1.5A
- Lights (L) max 0.1A
- Acoustic PDC sensors (in combination with CX-LS)
- DSP amplifier (SS)

In vehicles with a multifunction steeringwheel it is also possible to enable the function of some of its buttons using a combination of the interface and additional wiring harness (ARC-10x), some of the supported brands are: Alpine, Blaupunkt, Clarion, Digitaldynamic, JVC, Kenwood, Pioneer, Sony and Zenec (adapter is sold separately).
